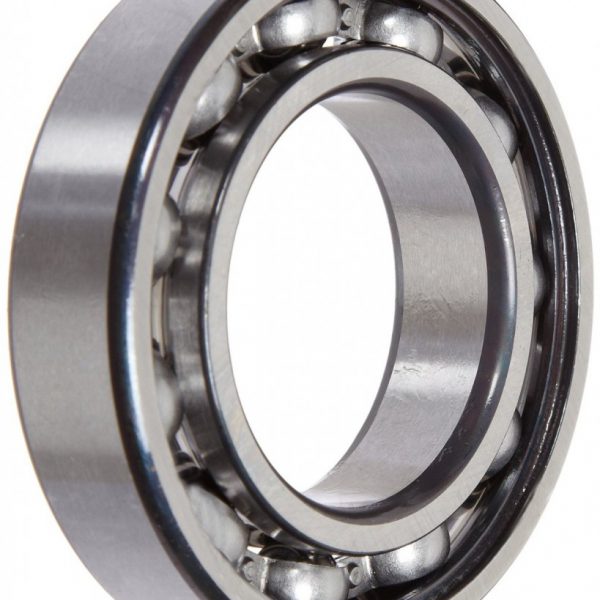

6301 Radial Bearing, Single Row, ABEC 1 Precision, Open, Steel Cage, Normal Clearance, Metric, 12mm ID, 37mm OD, 12mm Width, 53000rpm Maximum Rotational Speed, 950lbf Static Load Capacity, 2200lbf Dynamic Load Capacity



Merk: Bearing FAG

Nomor/Jenis Sparepart: 6301

Materi/Bahan: steel

Diameter Lubang: 12  mm

Diameter Luar: 37  mm

Lebar Bearing: 12  mm

Kecepatan Rotasi Maksimum: 3000  RPM

Kapasitas Muatan Statis: 430.913 kilograms

Kapasitas Muatan Dinamis: 997.9032 kilograms

Fitur Produk:

  • Axially symmetric races to support radial loads while maintaining high speeds and rotational accuracy
  • Conforms to ABEC 1 precision standard for performance within a narrow range of variation
  • CN (normal) radial internal clearance for applications that do not involve thermal expansion or atypical precision
  • Steel cage evenly spaces the rollers for even load distribution and prevents contact to reduce friction, vibrations, and noise

Deskripsi:

The FAG single-row, open radial bearing has symmetric races to support radial loads while maintaining high speeds and rotational accuracy. It conforms to the precision standard Annular Bearing Engineers Committee (ABEC) 1 for performance within a narrow range of variation, and it has a CN (normal) radial internal clearance for applications that do not involve thermal expansion. Its steel cage evenly spaces the rollers for even load distribution and prevents contact to reduce friction, vibrations, and noise. This radial ball bearing is suitable for use in general purpose applications that primarily involve radial loads and minimal axial loads at relatively high rotational speeds. These include transmissions, motors, and pumps, among others.

Specifications

Main bearing dimensionsDIN 715
Basic dynamic load ratingsDIN ISO 281
Dimensional and geometric tolerancesDIN 620-3 (ISO 199), tolerance class PN
Through-hardening steel for inner and outer rings and rollersISO 683-17
Steel strip for cageEN 10139, SAE J403
Load carrying capacity and lifeDIN ISO 281 Appendix 1
System for creating part numbers for rolling bearingsDIN 623-1



Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.



6301 Radial Bearing
